  • Starre Spannverschlüsse Starre Spannverschlusse 1
  • Starre Spannverschlüsse Starre Spannverschlusse 2
Produktbeschreibung Technischen Datenblatt Ergänzung
Riveted link gives great strength.
Supplied with or without spring safety lock - particularly suitable for equipment liable to vibration.
Supplied with or without padlock hasp.
Possibility of sealing.
Suitable for screw fixing or welding. Spring safety lock requires positive action to release latch.
High robustness
Supplied with safety lock (particularly suitable for equipment liable to vibration)
Possibility of sealing

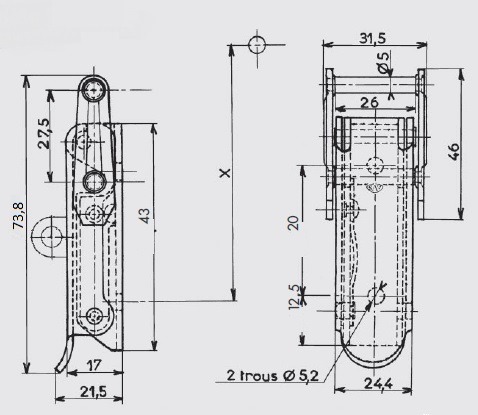

Approximate fixing position to give 150daN tension, using catch plate AC 144
x = 44.5mm
Maximum operating tension: 250daN
Recommended Catch Plates: Type AC 144
Lever: Metal Thickness 2.0mm
Base: Metal Thickness type 2.0mm
Link: 5mm diameter wire, welded
Download der IGS Datei
MATERIALFERTIGUNGBEFESTIGUNGTHEORETISCHES GEWICHT
KG/HUNDERT		REFERENZ
Stahlgebeiztmit Bohrungen8,500GO.2073-BR*
StahlBichromat-Zinküberzugmit Bohrungen8,500GO.2073-ZB*
StahlWeißer Zinküberzugmit Bohrungen8,500GO.2073-ZI*
Edelstahl 18/8Rohmit Bohrungen8,500GO.2073-IB*
* Artikel auf Anfrage gefertigt
