Produktbeschreibung Technischen Datenblatt Ergänzung

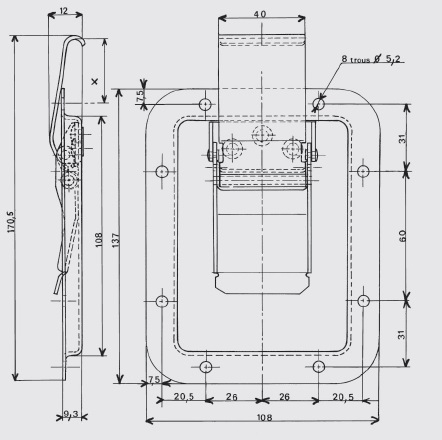

Similar to type 41 but on a recessed plate.
Use with recessed catch plate AC 1160 and one of our range of recessed handles:

Supplied with manual safety lock.
Please see type GE 41 for details of the safety lock which is incorporated into this latch.
Suitable for use in areas of low clearance due to the latch's ultra low profile.
The link lies flat when open minimising the risk of accidental damage.
possibility of sealing.
Alternative link lengths are available to special order.
stainless steel latches have reinforced links.
Same specifications than models GE.41
Approximate fixing position to give 250daN tension
x = 33mm
Maximum operating tension: 350daN
Recommended catch plate: AC 1160
Lever: Material thickness 1.5mm
Base: Material thickness 2.0mm
Link: Material thickness 1.5mm
Recess Plate: Material thickness 1.2mm
Download der IGS Datei
MATERIALFERTIGUNGBESFESTIGUNGTHEORETISCHES GEWICHT
KG/HUNDERT
REFERENZ
StahlBichromat-Zinküberzug mit Bohrungen21,900GE.1041-FZB*
Edelstahl 18/8 Roh mit Bohrungen21,800GE.1041-EIB*
